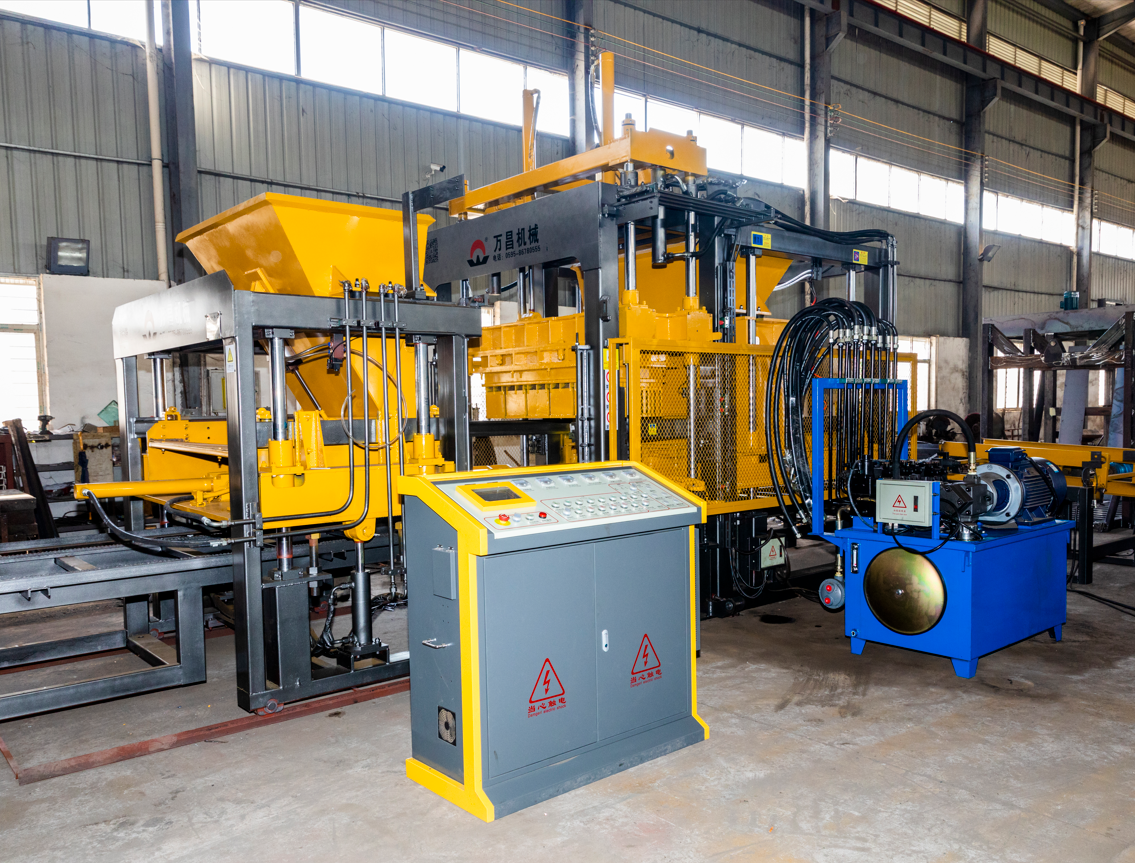

Description
- Equipped with independent R&D control system: Seamlessly connecting hydraulic system and mechanical parts, realize comprehensive control of electromechanical fluids, make the whole machine run efficiently and achieve optimum working conditions.
- Strong self-diagnosis and guidance ability: Real-time monitoring and display system performance, timely shutdown in time if problems founded and alerting, etc. Provide solutions and treatment method.
- Human-machine conversation: By selecting import PLC programmable controller, color touch screen, more humane operation interface, parameter guidance and so on.
- High performance hydraulic technology: Germany high performance technology, dual hydraulic drive system. High vibration intensity, short forming period and high product strength.
PRODUCTION CAPACITY
| Length (L mm) |
Width (W mm) |
Height (H mm) |
PCS/Mold |
PCS/8 HOUR |
| 390 |
190 |
190 |
10 |
16800-19200 |
| 240 |
115 |
51 |
51 |
92400-110000 |
| 200 |
100 |
60 |
45 |
46800-59400 |
| 240 |
115 |
90 |
24 |
40320-46080 |
The above output is a theoretical calculation value. Output is related to molding cycle, production volume, raw materials and product types.
TECHNICAL DATA
| Parameter Name |
Specification |
Parameter Name |
Specification |
| Machine Size |
3200×2510×2750 (mm) |
Power of Machine |
53.9 kW |
| Production Area |
1000×850 |
Vibration Power |
75-110 (kN) |
| Cycle Time |
15-20 (s) |
Required Factory Area |
1000 (m²) |
| Pallet Size |
1100×900×30 |
Power Required |
125 kW |
| Machine Weight |
11.8 (T) |
Mixer |
JS750 |
