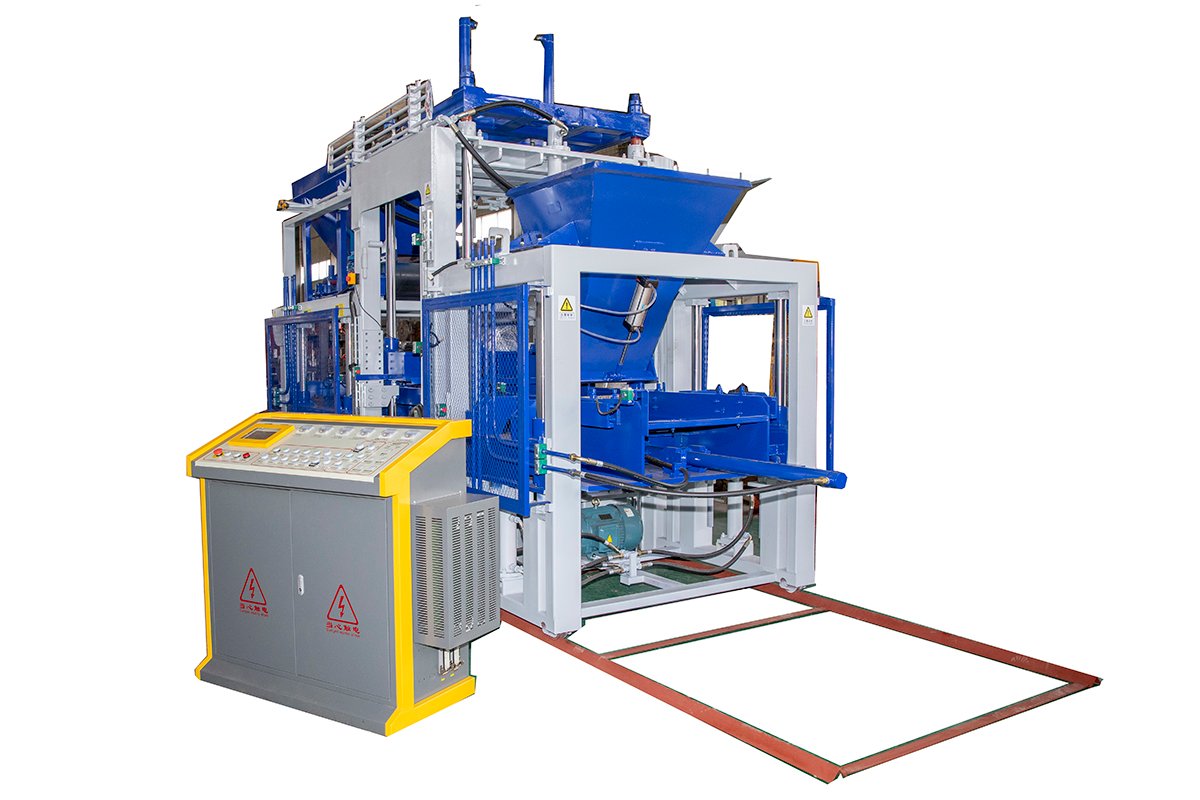

Automatic concrete block forming machine QT8-15

Automatic concrete block forming machine QT8-15

Category:

Description

FEATURES

  1. Siemens touch screen and PLC: Used in the electrical system. The control system includes safety logic control and fault diagnosis system.
  2. Hydraulic components: Adopt high dynamic proportional valve, which can adjust oil quantity and pressure according to different production requirements.
  3. Machine body: Made of high strength casting and special welding materials, with good rigidity, vibration resistance and long service life.
  4. Four bar guiding mode: Adopted to ensure the accurate operation of the ram and die.
  5. High efficiency: Formed by vibration and pressure on the table. Feeding device 360° rotation forced distribution, short molding cycle and high production efficiency.

Main product specifications and output

BLOCK SIZE PCS CYCLE (SEC) PCS/HOUR PCS/SHIFT (8H)
240 x 115 x 53 42 15-20 8000-10000 64000-80000
390 x 190 x 190 8 15-20 1440-1920 11520-15360
240 x 115 x 90 18 15-20 3240-4320 25920-34560
150 x 100 x 100 32 15-20 5760-7680 46080-61440
190 x 190 x 190 16 15-20 2880-3840 23040-30720
200 x 100 x 60 28 20-25 4032-5040 32256-40320
200 x 200 x 60 12 20-25 1728-2160 13824-17280

TECHNICAL DATA

Parameter Name Specification Parameter Name Specification
Machine Size 3200 × 2510 × 2750 (mm) Power of Machine 53.9 (kW)
Production Area 1050 × 800 (mm) Vibration Power 75-110 (kN)
Cycle Time 15-20 (s) Required Factory Area 900 (m²)
Pallet Size 900 × 900 × 25/30 (mm) Power Required 125 (kVA)
Machine Weight 11.8 (T) Mixer JS750
